Magnetic Drill Electric Tapping Machine Multi-functional Drilling Hole and Tapping Machine Portable Coring Drill 1.97inch/Twist Drilling Hole 0.9inch /M14 Tapping

Parameters: Voltage: 110V Power Input: 1400W Max.attraction: 17000N Rate frequency: 60Hz No-load speed: 100-510rpm Twist drill dia: 23mm Core drill dia: 50mm Max tapping dia: M14 Gross weight: 37.5lb(17kg)/40lb(18.2kg) Package size: 15.2*6.7*18.3inch(38.5*17*46.5cm)

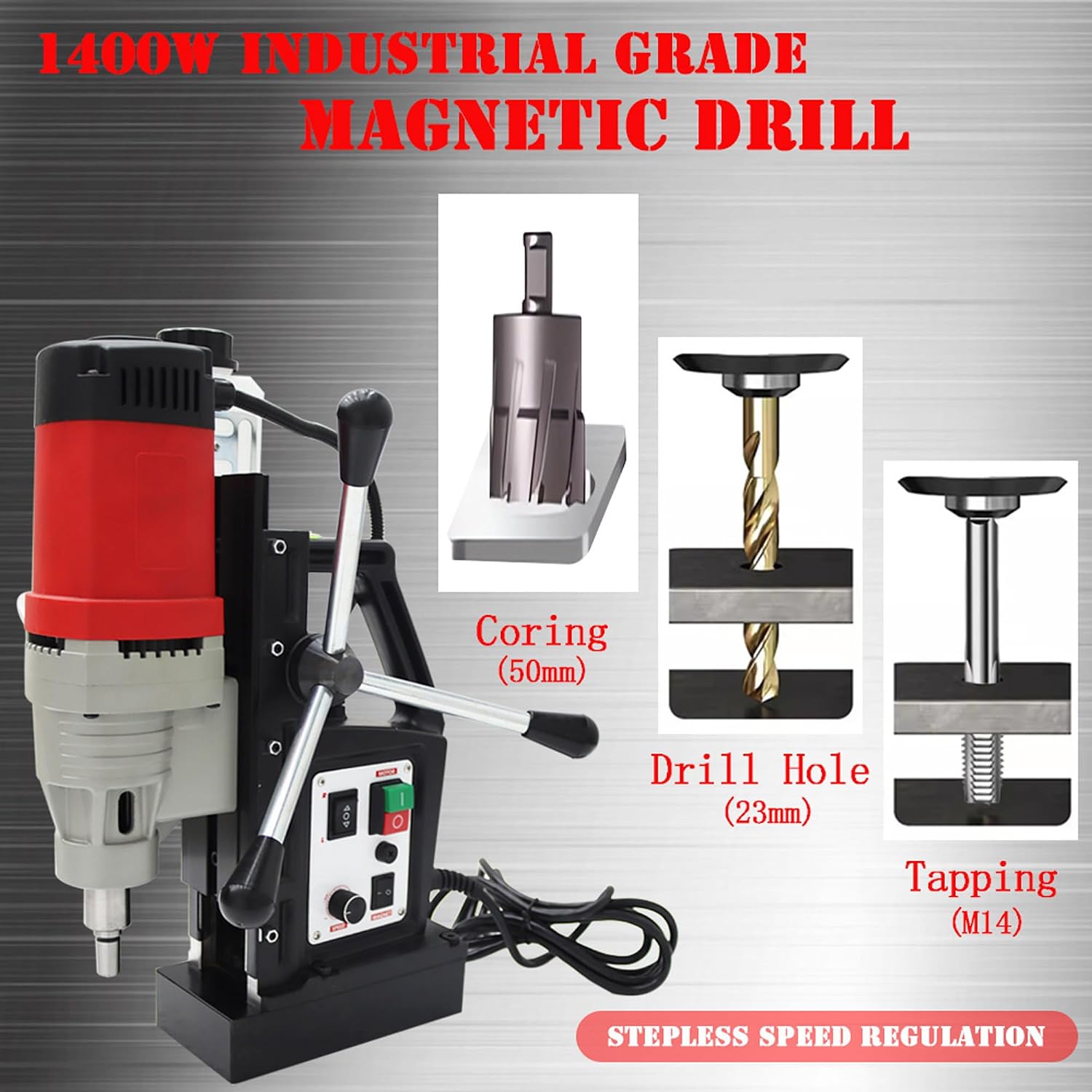

• 【Parameters】The machine can realize the function of coring, drilling and tapping by changing different drills. The diameter of the core is 50mm(1.97inch), the diameter of the twist drill hole is 23mm(0.9inch) and M14 tapping hole.
• 【Speed Adjustable】Equipped with machine start switch, forward and reverse switch, magnetic switch, simple operation, infinite speed control knob, no-load speed 100-510rpm adjustable.
• 【Excellent Design】Super suction magnetic seat, suction Max 17000N, safe and reliable, side suction can be suction.Adopt rocker type lifting handle that can accurately control the height of the head lifting.

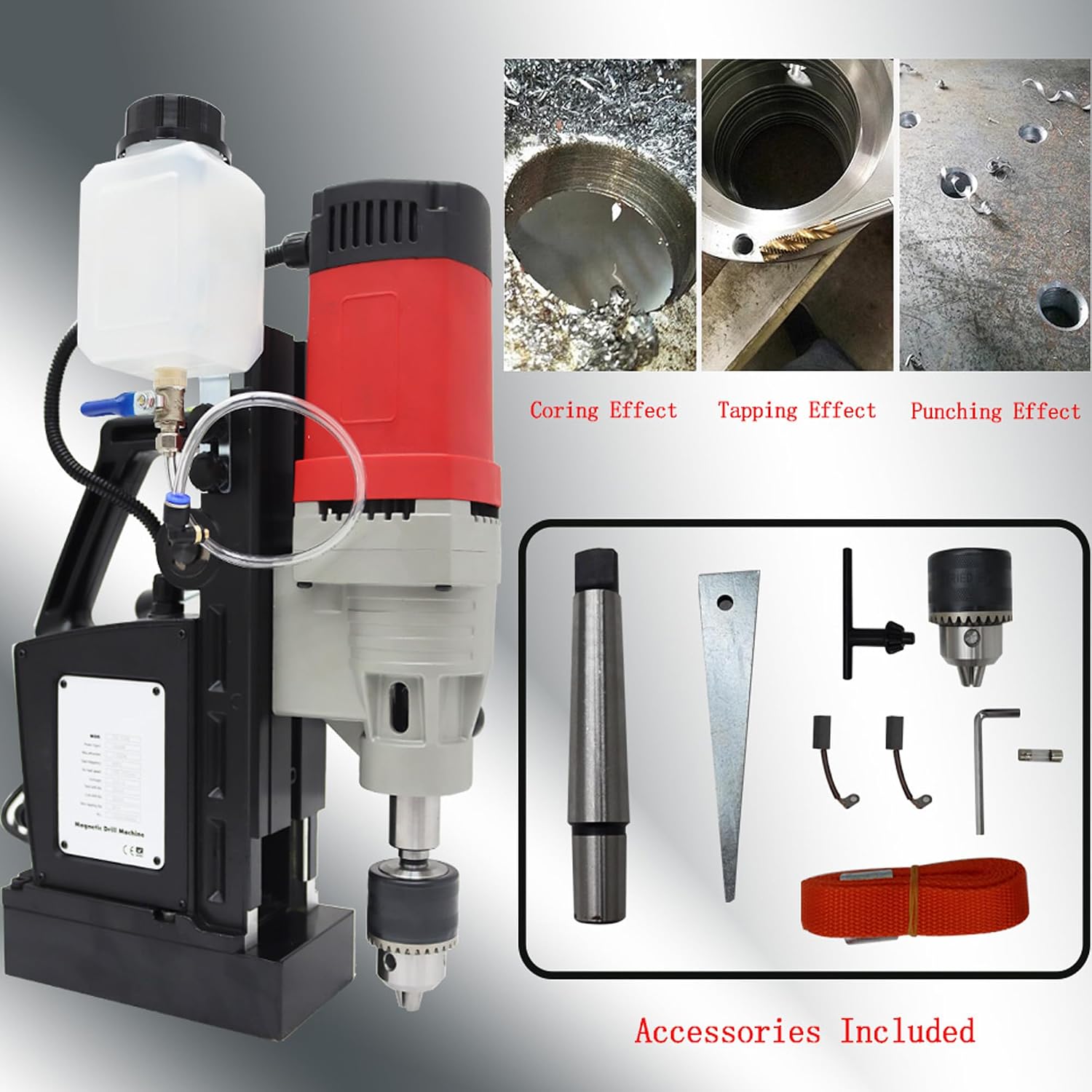

• 【Cooling Water Bottle】When coring work, through the hanging kettle, can provide cooling water for the work, reduce the temperature of the drill and the work-piece.
• 【Application】After being energized, the electromagnet of the magnetic drill base generates a magnetic field that can firmly adhere to the surface of the work-piece, achieving drilling or threading of steel plates.Suitable for steel structures, shipbuilding, equipment manufacturing, equipment installation, bridge engineering, wind power generation, oil drilling platforms, power construction, railway manufacturing and other fields.
